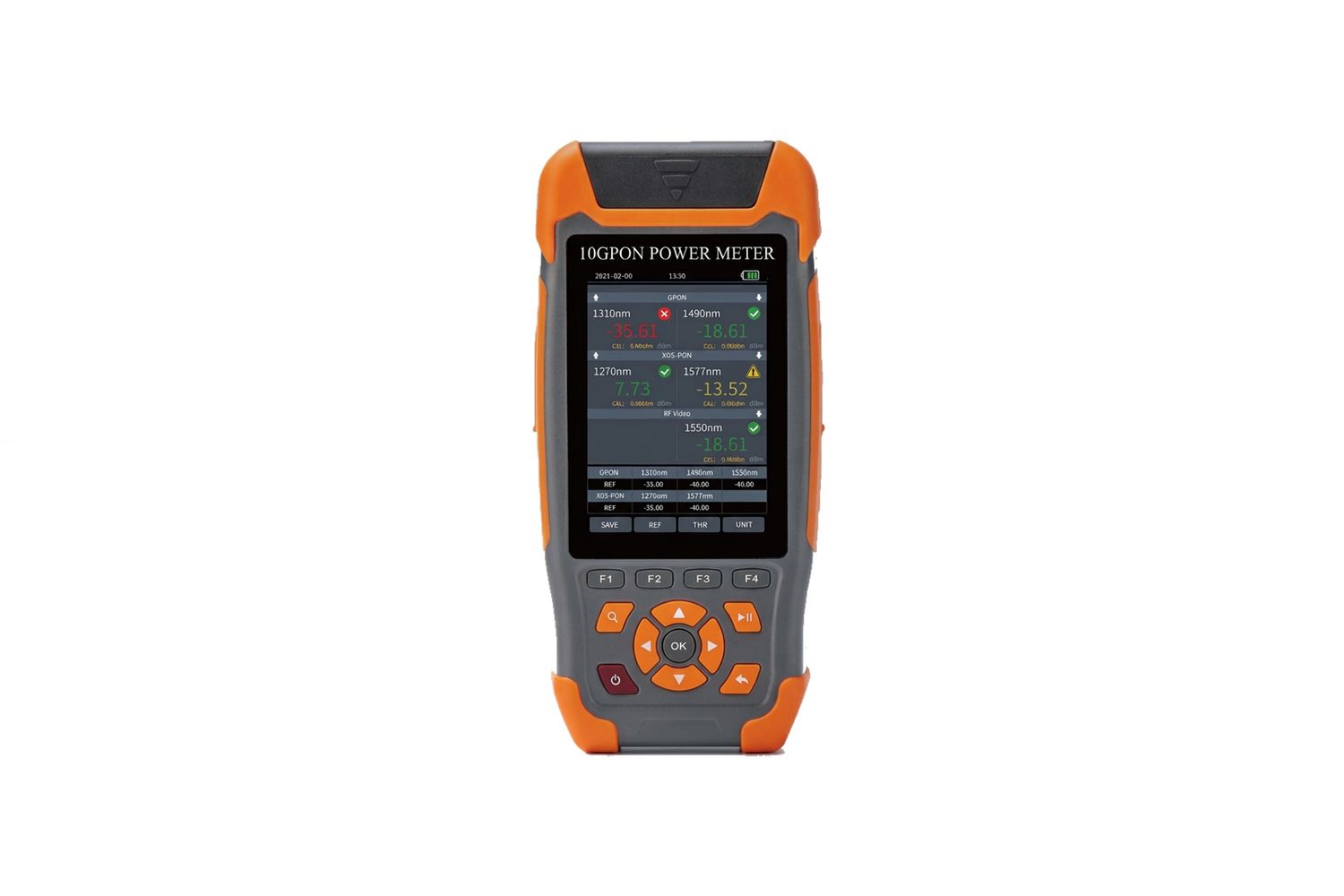

NK5O3 can measure the power of GPON/EPON and XGPON/XG SPON network uplink and downlink signals,including uplink 1270/1310nm signal,and downlink 1490/1550/1577nm signal. It integrates 5 functions,such as VFL, RJ45 Cable sequence, Iength and tracking test. It can simultaneously test and judge the optical power value of voice, data and video signals.It can measure all PON signals, and measure each wavelength separately. It is an ideal choice for PON network engineering, construction and maintenance. It has the function of "Pas/Fail" optical fiber authentication detection by setting different thresholds corresponding to different wavelengths, which ensures that service providers can improve the system performance by verifying network connectivity.

Type: 10GPON XGPON Power Meter
Use: FTTX
Detector type. InGaAs
Wavelength: 1270~1577nm
Measurement range (dBm): -35~+10/-35~+10/-40~+12/-40~+25/-40~+12
Uncertainty: <±5dB
Polarization loss: <±0.25dB
Linear:±0.1dB
Insertion Loss:<1.5dB
Display Resolution 0.01dB
Unit: dBm/xW
Calibrated wavelength: 1270/1310/1490/1550/1577nm
Resolution (dB): 0.01
Optical connector: FC/UPC(SC)
Power supply: Polymer Li-Battery: 3.7V, 4000mAh; Adapter; 5VDC, 2A
Battery operating time: Working time: >12h Standby time: >20h
Storage space: 1000 tests

VFL:
Wavelength: 650±20nm
Output Power: >10mW
Mode: CW/1Hz/2Hz
Connector: FC/SC/ST

Dimensions: 173x82x37mm
Weight: 350g
