Easy to operate, depending on the configuration, it can test the power of up to 6 wavelengths of the PON system at the same time. Supports continuous light output, 1Hz, 2Hz modulated light. The light source has strong penetration and easily penetrates long distance optical fibers.

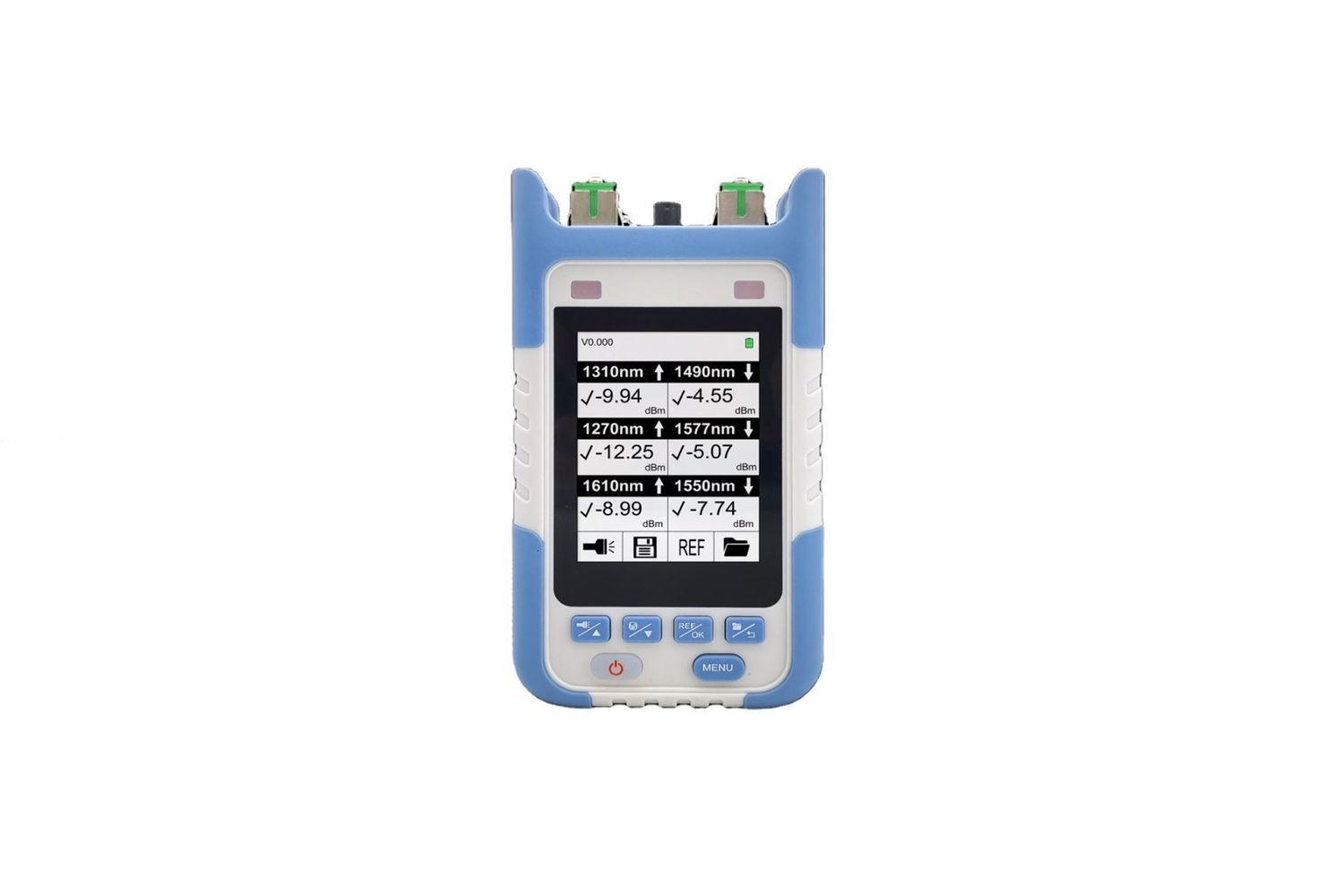

Type: 10GPON XGPON Power Meter
Use: FTTX
Wavelength: 1270~1610nm
Measurement range (dBm): -40~+10/-45~+10
Uncertainty: ±5dB
Polarization loss: <±0.25dB
Linear:±0.1dB
Insertion Loss:<1.5dB
Display Resolution 0.01dB
Unit: dBm/xW
Calibrated wavelength: 1270/1310/1490/1550/1577/1610nm
Resolution (dB): 0.01
Optical connector: SC/UPC/APC
Power supply: 4.2V 2400mAh battery
Battery operating time: 20 hours around
Storage space: 1000 tests

Dimensions: 155x85x40mm
Weight: 300g
