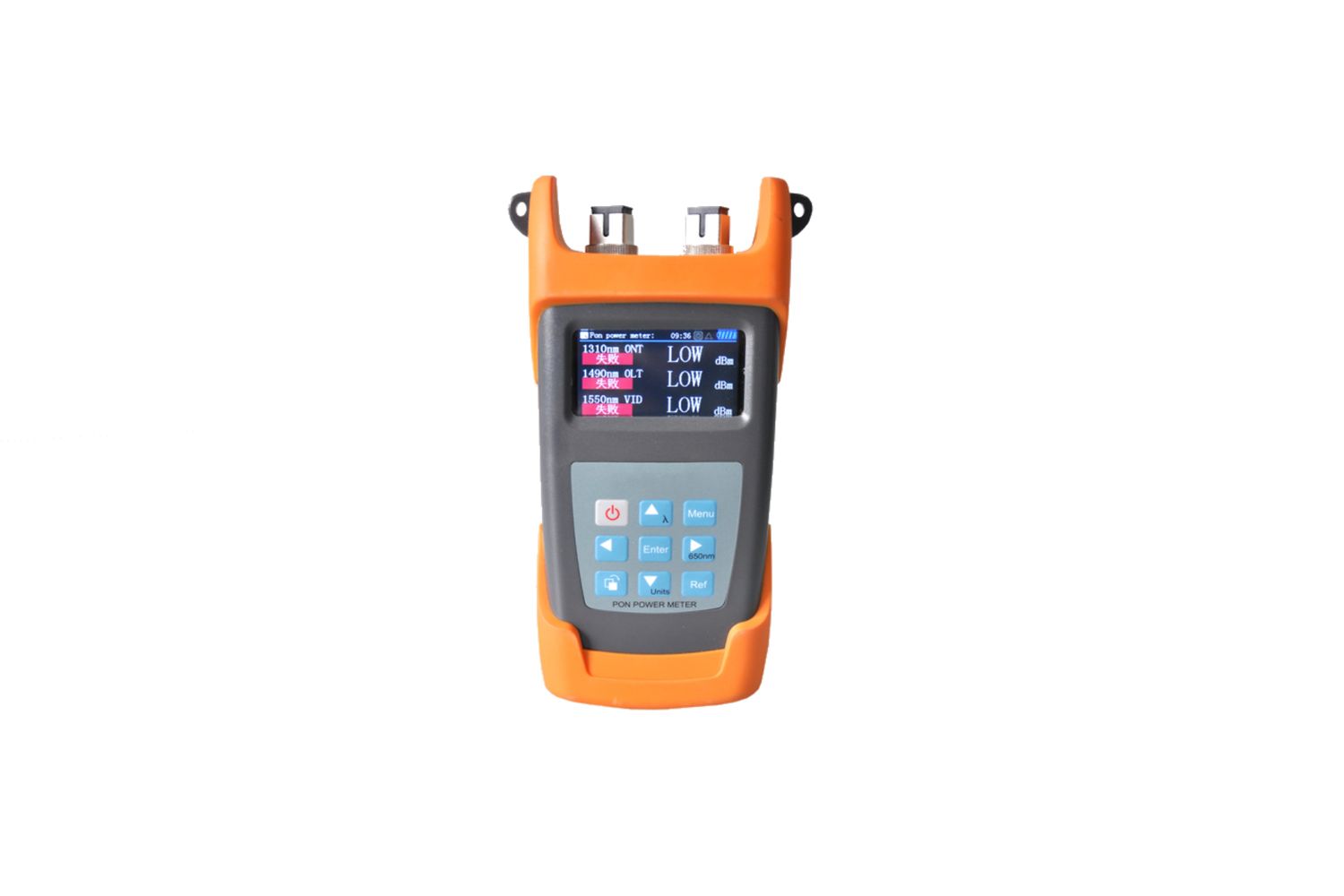

XGPON/10GPON Power Meter is a tester for FTTX network. It has all the functions of the traditional PON tester. Besides, it also has the function of the next generation PON testers. S317 could judge whether the power value is suitable or not by self-setting the threshold. It is an ideal tester for PON network and maintenance.

Type: 10GPON XGPON Power Meter
Use: FTTX
Wavelength: 800~1700nm
Detector: InGaAs
Measurement range (dBm): -70~+3/ -50~+26
Uncertainty: ±5%
Calibrated wavelength: 850,1300,1310,1490,1550,1625
Resolution (dB): 0.01
Optical connector: FC and 2.5mm universal
Power supply: Alkaline battery (3 AA 1.5V batteries)
Battery operating time: 240 hours with 1.5V battery(3)
Storage space: 1000 tests

Dimensions: 192x102x50mm
Weight: 420g
