Visual Fail Locator OPM Komshine
Product Details

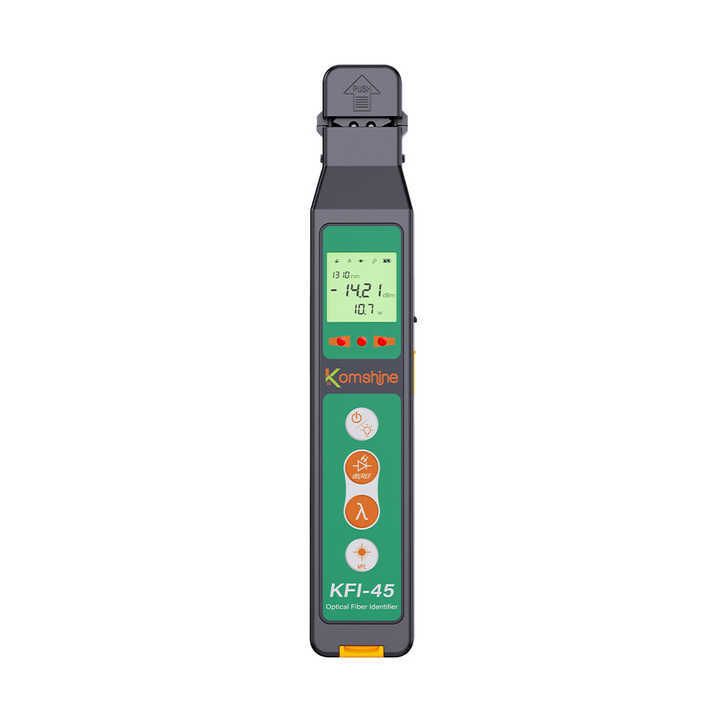

The KomShine KFI-45 Optical Fiber Identifier can quickly identify the direction of transmitted fiber and display the relative core power without any damages to the bended fiber. When the traffic is present, the intermittently audible tone is activated.
Wavelength Range 800-1700nm
Signal Recognition Type: CW, 270 Hz±5%, 1kH±5%, 2kHz±5%
Detector Type: 1mm lnGaAs 2pcs
Signal Direction: Direction indicator displays signal transmission direction
Optical Power Reading Range: -40dBm - 10dBm
Signal Frequency Range: 270Hz, 1kHz, 2kHz
Power Type: AA*2
Visual Fault Location:
Power Range: 1mW
Testing Distance 3-5km
Wavelength 650nm
Laser Type: LD
OPM:
Wavelength Range: 800-1700
Measurement Range (dBm): -70~+6/-50~+26dBm
Standard Wavelength: 850/980/1300/1310/1490/1550/1625nm
Optical Connector: 2.5mm universal interface + C
Dimensions: 219x45x28mm
Weight: 235g
