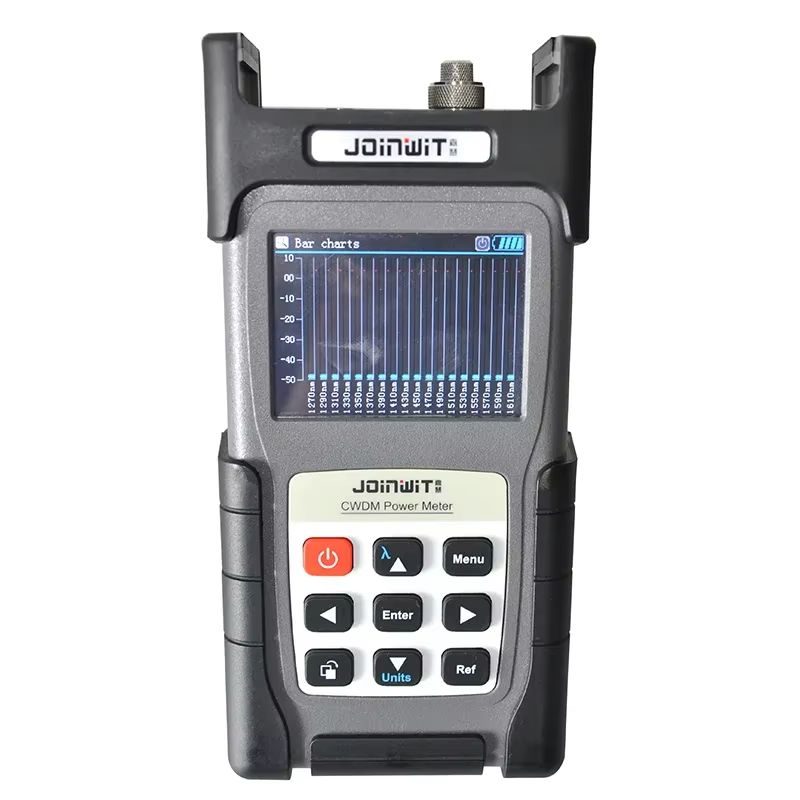

JW3226A Power Meter is specially designed for systems covering wavelengths from 1270~1610nm. It measures and monitors the optical power and attenuation value of 18 channels from wavelengths 1270nm to 1610nm. All calibrated wavelengths will be tested simultaneously, and all test results will be displayed on the LCD screen. This power meter has simple operation, fast response and high measurement accuracy, making it an ideal tester for system installation and maintenance.

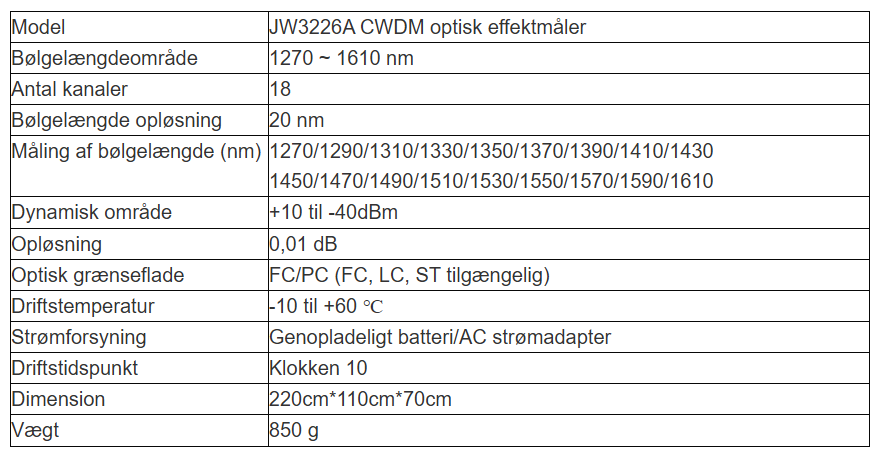

Type: CWDM Power Meter
Wavelength Range: 1270~1610nm
Number of Channels: 18
Wavelength Resolution: 20nm
Measuring Wavelength (nm): 1270/1290/1310/1330/1350/1370/1390/1410/1430/!450/1470/1490/1510/1530/1550/1570/1590/1610
Dynamic Range: -40~+10dBm
Resolution: 0.01dB
Optical Interface: FC/PC (FC/LC/ST)
Power Supply: AC Power Adapter

Dimensions: 220x110x70mm
Weight: 850g
